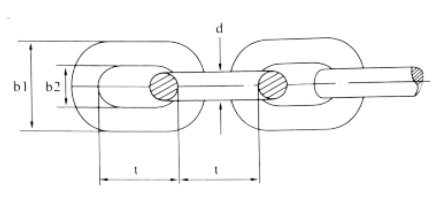

| SIZE | t | b1 | b2 | LENGTH PER11 LINKS | WEIGHT PER100M | TEST LOAD | |||
| +/-mm | +/-mm | mm | mm | +/-mm | kg | kg | |||
| 4 | 0.2 | 16 | 0.3 | 5 | 14 | 176 | 1.60 | 31.3 | 400 |
| 0.2 | 0.90 | ||||||||
| 5 | 0.2 | 18 | 0.4 | 7 | 18.2 | 198 | 1.80 | 51.4 | 680 |
| 0.2 | 1.00 | ||||||||
| 6 | 0.2 | 21 | 0.5 | 8 | 21.5 | 231 | 2.00 | 74.0 | 850 |
| 0.2 | 1.10 | ||||||||
| 8 | 0.2 | 28 | 0.5 | 11 | 29 | 308 | 2.20 | 131.5 | 1680 |
| 0.3 | 1.20 | ||||||||
| 10 | 0.3 | 35 | 0.6 | 14 | 36 | 385 | 2.70 | 200 | 2630 |
| 0.3 | 1.50 | ||||||||
| 13 | 0.4 | 45 | 0.7 | 18 | 47 | 495 | 3.50 | 350 | 4200 |
| 0.4 | 2.00 | ||||||||
| 16 | 0.5 | 56 | 0.9 | 22 | 58 | 616 | 4.30 | 520 | 6700 |
| 0.5 | 2.50 | ||||||||
| 18 | 0.8 | 63 | 1.0 | 24 | 65 | 693 | 4.70 | 650 | 8400 |
| 0.5 | 2.80 | ||||||||
| 20 | 1.0 | 70 | 1.1 | 27 | 72 | 770 | 5.40 | 820 | 10000 |
| 0.6 | 3.20 | ||||||||
| 23 | 1.2 | 80 | 1.3 | 31 | 83 | 880 | 6.20 | 1100 | 13000 |
| 0.7 | 3.50 | ||||||||
| 26 | 1.3 | 91 | 1.5 | 35 | 94 | 1001 | 7.00 | 1400 | 16000 |
| 0.8 | 4.00 | ||||||||
