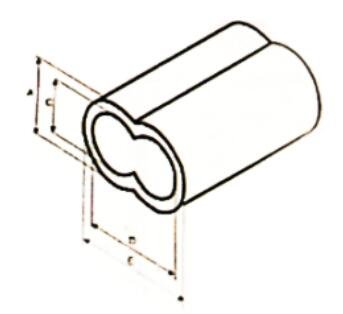

| ROPE/DIAmm | STANDARD LENGTH | N.W/1000pcs | Dimension | |||
| A | B | C | D | |||
| 1.6(1/16") | 9.6 | 0.41 | 4.37 | 6.35 | 1.96 | 4 |
| 2(5/64") | 9.6 | 0.73 | 5.56 | 7.95 | 2.39 | 4.8 |
| 2.4(3/32") | 12.7 | 1.45 | 7.06 | 10.26 | 3.30 | 6.5 |
| 3.2(1/8") | 15.9 | 2.90 | 8.71 | 12.70 | 3.96 | 7.9 |
| 4(5/32") | 17.5 | 3.63 | 9.53 | 14.30 | 4.75 | 9.5 |
| 5.1(3/16") | 25.4 | 7.17 | 11.20 | 16.90 | 5.66 | 11.4 |
| 5.6(7/32") | 27.0 | 10.07 | 12.70 | 19.10 | 6.35 | 12.7 |
| 6.4(1/4") | 28.6 | 11.43 | 13.61 | 20.80 | 7.37 | 14.6 |
| 7.1(9/32") | 30.2 | 12.81 | 14.27 | 22.35 | 7.92 | 16.0 |
| 8(5/16") | 31.7 | 20.41 | 17.45 | 26.19 | 9.53 | 18.3 |
| 9.5(3/8") | 36.5 | 27.53 | 19.05 | 29.36 | 11.13 | 21.4 |
| 11.1(7/16") | 42.8 | 53.52 | 23.8 | 36.50 | 12.7 | 25.4 |
| 12.7(1/2") | 50.8 | 79.83 | 27 | 41.28 | 14.27 | 28.5 |
